Tabletop Small Bottles Pharmaceutical Liquid Filling Capping Machine

• Tabletop Small Bottles Pharmaceutical Liquid Filling Capping Machine
• Speed: 1200pcs per hour single nozzle.
• Bottles Type: stand up, not easy to fall
• Bottles Height: 13mm-50mm
• Bottles Diameter: 10mm-50mm
• Filling Volume: 0.1ml-100ml
• Filling Accuracy: ±0.5% (varied due to the pump and the filling materials)
• Power Supply: 220V/Single phase/50-60HZ
• Power Consumption: 1200W
• Air Pressure: 0.3~1.0MPa，0.6L/min
• Materials: 304SUS,Disk white Nylon
• Weight: 142KG
• Machine Size Standard: L1230xW850xH700 (mm)

The machine is the compact type to fill and seal the bottles small volume in the pharaceutical chemcial cosmetic industry.

The tabletop filling and capping machine meets the demands of flexible small batch production, while offer a professional production quality. Comprehensive and compact design.

Applied to vial filling and cap capping for drop, lotion and perfume. Flexible to various industries including cosmetics, chemicals and pharmaceuticals. The filler for food products with exacting demands. It causes an excellent return on investment, when upgrading from manual filling and capping solutions.

The machine’s compact foot print makes it easy to use at different places within a production facility.

The automatic single head liquid vial filling and capping machine is manufactured for the filling and capping of glass vials, perfume spray bottles and other small ones.

The fully automatic systems are customised to fit any glass vial, plastic bottle, test tube and tiny bottle which is not easy to operate by hands.

The machines offered by us are manufactured as per the set industry standards and norms using superior quality.

Various plastic or glass bottles.

Can be fill-sealed with the laminar flow and safety chamber.

Easy to change for different sizes of bottles.

Main Function

Bottles feeding filling with volume 0.1ml-100ml, filling accuracy less than 0.5%.

Plugging capping with the servo controlling system for adjusting the torque.

Touch screen; mitubish PLC system

Passwords administration.

Customized according to different requirements

Printer optional to the machine filling and capping.

Basic Parameter

Speed: 1200pcs per hour single nozzle.

Bottles Type: stand up, not easy to fall

Bottles Height: 13mm-50mm

Bottles Diameter: 10mm-50mm

Filling Volume: 0.1ml-100ml

Filling Accuracy: ±0.5% (varied due to the pump and the filling materials)

Power Supply: 220V/Single phase/50-60HZ

Power Consumption: 1200W

Air Pressure: 0.3~1.0MPa, 0.6L/min

Materials: 304SUS, Disk white Nylon

Weight: 142KG

Machine Size Standard: L1230xW850xH700 (mm)

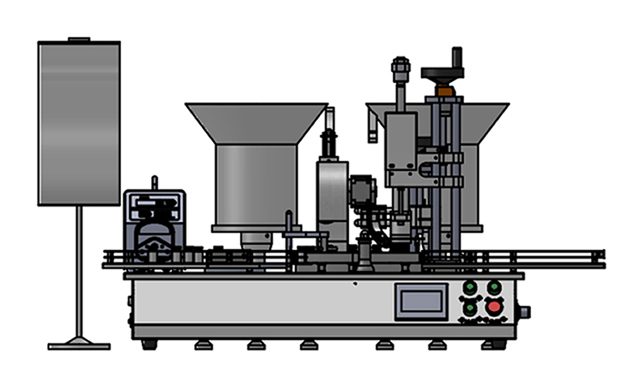

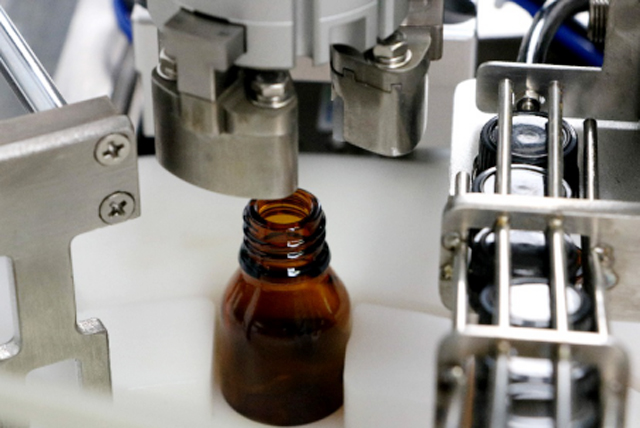

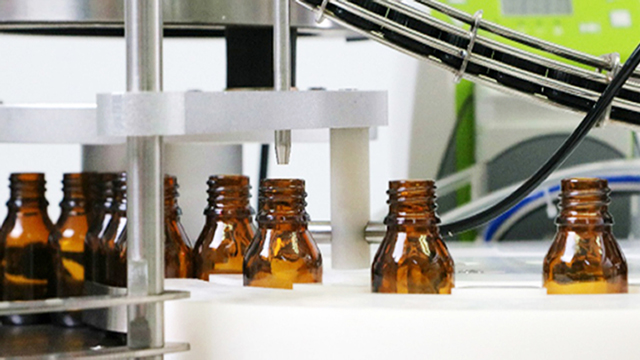

Details Of Tabletop Type Filling Capping Machine:

Main Features Small Bottles Filling And Capping Machine:

1. Compact format design, space saving.

2. Fully automatic tabletop in-line system.

3. Filling with high accuracy in high speed.

4. Advanced valves prevent liquid from dripping down.

5. Capping head driven by single motor for quality capping.

6. Bottle unscrambling system speed up the production.

7. Star wheel for precise positioning.

8. Adopt precise sensor, smart operating, no bottle-no filling and no capping.

9. Colorful touch screen controller with user-friendly PLC system.

10. All setting can be done by one touch screen, easy to operate.

11. Front panel Start and Emergency Stop button.

12. Speed knob controller configuration, easy adjustments can be made.

13. Job memory device, quick and simple changeover.

14. Robustness construction prolong the longevity.

15. Compliance GMP standard, made of SUS304 stainless steel and and anodized aluminum.

16. We offer Filling Capping machine for packing of filling products at any kinds of liquid. Easy to operate and cost effective.

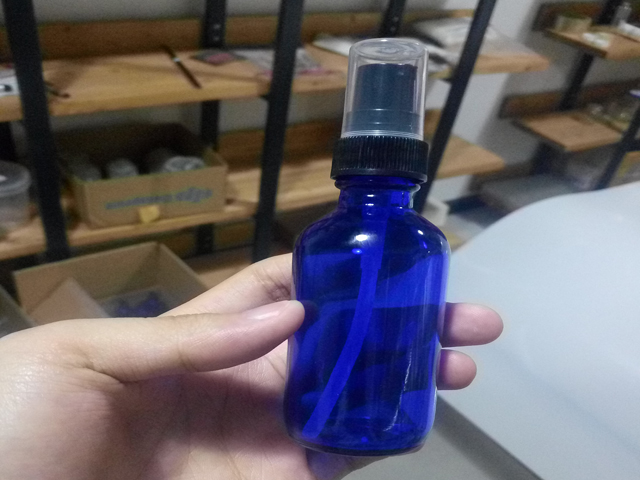

Samples:

Guarantee: For all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory,if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician USD150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account. (As above).
