Automatic Rotary Glass Jars Pick And Place Capping Machine
  • Model: VK-PPC
  • Speed: 20pcs-40pcs per min
  • Rated voltage: 110V/60Hz(USA market customized)
  • Machine Power: 800W
  • Exterior dimension: About 2300*1800*1800 MM (L*W*H)
  • Air Pressure: 0.7-1.0 MPa
  • Weight: About 400 Kg
View Video

The whole automatic capping machine adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery, it adopts suit type assembly. The maintenance and servicing can be completed without professionals. when it is necessary to replace the product, just make some simple adjustments, it can be immediately put online for production.

The machine is suitable for capping various types of round bottles in such industries as food, condiment, medicine, wine, oil and cosmetics etc.

Drawing:

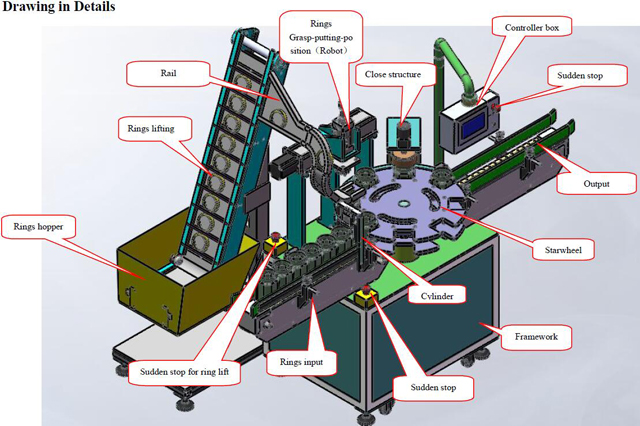

details drawing.jpg

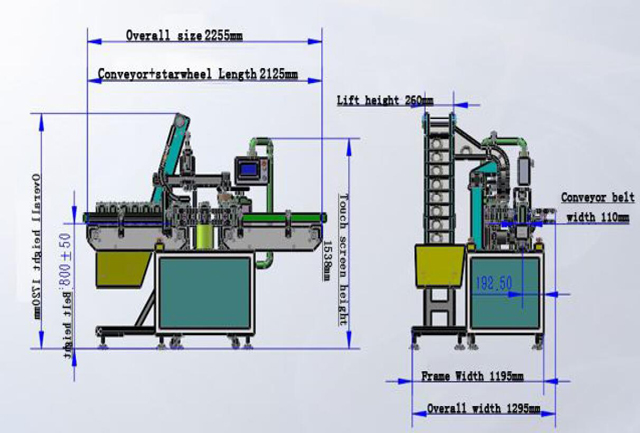

CAD pictures FOR sealing machine.jpg

Basic Parameter:

  • Model: VK-PPC
  • Speed: 20pcs-40pcs per min
  • Rated voltage: 110V/60Hz(USA market customized)
  • Machine Power: 800W
  • Exterior dimension: About 2300*1800*1800 MM (L*W*H)
  • Air Pressure: 0.7-1.0 MPa
  • Weight: About 400 Kg

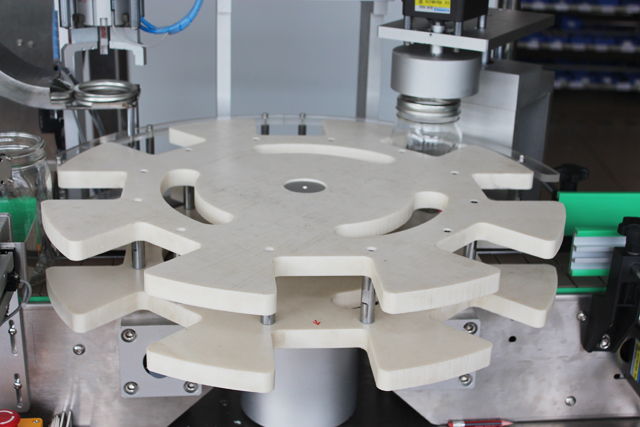

double layer starwheel.jpg

Notification Before Operation Of The Rotary Sealing Machinery

  • Before the machine is plugged in, make sure the power switch is in the closed state, and then follow the instruction.
  • If the machine does not run in a long time, it should be wiped with a piece of dry cloth and must not be cleaned with any corrosive cleaning agent.
  • It is strictly prohibited to spurt any liquid into the electric box of the machine, so as to avoid corrosion to the internal electrical components and cause short circuit.
  • Check according to the equipment packing list models, specifications and quantity of the equipment and materials to make sure that they meet the requirements of design and product standards and accompanied by certificates of conformity.
  • Check the appearance of the equipment to make sure that it is free from any deformation, damage and corrosion, and all spindles that they should be flexibly rotating without any blockage.
  • This machine is working under single phase AC 110V, and the flat 3-legged power plug should be plugged into the power socket with a ground wire.

Alarm And Trouble-Shooting Method:

  • Emergency stop has been pressed. Push the emergency stops on the machine cap and next to the touch screen.
  • The output reaches the set value. Set the output, press the clear button to clear the current output.
  • When caps are not detected for a long period of time, please check. Check the bottle cap induction fiber as to whether it is well provided. Check whether caps are in place or not.
  • When bottles are not detected for a long period of time, please check. Check as to whether bottles are in place.

Electric Eye Adjusting:

Amplifier Structure

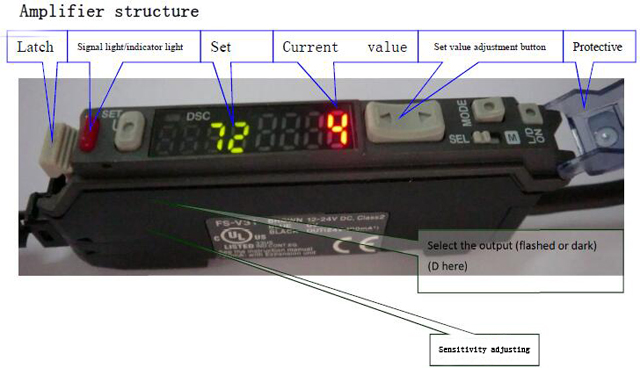

amplifier structure.jpg

Diagram for Optical Fiber:

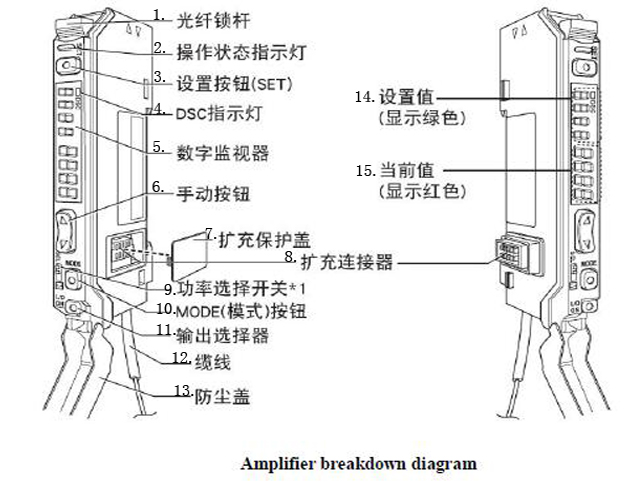

Amplifier structure diagram.jpg

  1. Optical fiber lock bar
  2. Operating status indicator
  3. Set
  4. DSC indicator light
  5. Digital monitor
  6. Manual button
  7. Extended protection cover
  8. Expansion connector
  9. Power Selector Switch
  10. Mode button
  11. Output selector
  12. Cables
  13. Dust protector
  14. Set value (In green)
  15. Current value (In red)

Working Process For The Fiber Optical Setting:

  1. When the electric eye falls in the gap, the red current value is 144.
  2. When the electric eye falls on the label, the red current value is 4.
  3. Adjust the set value",about 1/2 of the value that the electric eye is on the body paper (in the gap between the objects to be detected) and the value that the electric eye is on the paper the set value is (144 4)/2=74, adjust the manual button to adjust the set value to be 74.
  4. Move the label gap back and forth in the electric eye location and the red “signal light/indicator light”.

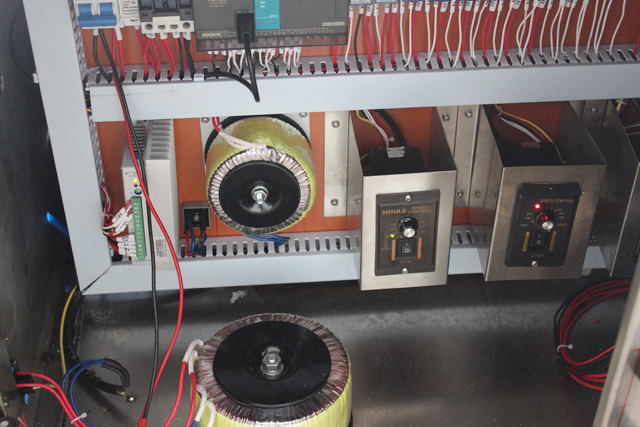

internal machine electronic.jpg
