- Model: VK-RPL
- Labeling accuracy: ±1mm (not including the label error)
- Labeling speed: 25~45bpm
- Diameter&height of bottles Diameter: φ25mm~φ120mm height:25mm~300mm
- Label size Length: 20mm~290mm Width:20mm~160mm
- Overall size of machine: About 1950mm×1200mm×1530mm(L×W×H)
- Supply power: 220V/50HZ 110V/60HZ
- N.W About: 185Kg

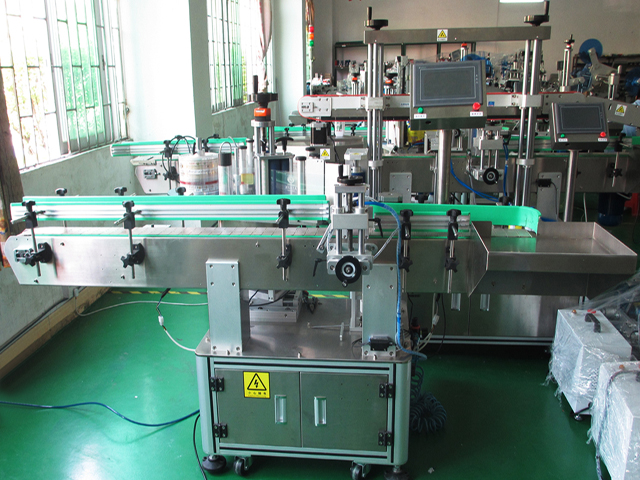

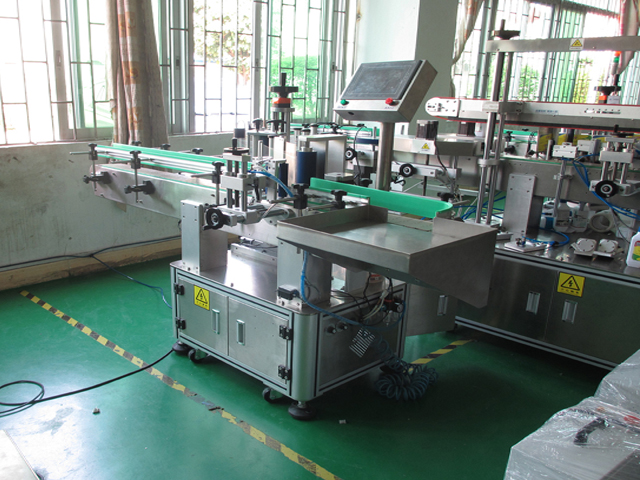

The labeling equipment is for the round bottle labeling in the industry like food, oil, pharma, wine, cosmetics and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine. Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.
Characteristics:
- The main body of equipment is made of SUS304 and advanced Aluminum products.
- The labeling heads is drived by the Server motor that is imported from Japan.
- All the light sensor equipment is imported from both Japan and Germany.
- PLC Controlled by the human-machine interface with 60 memory units.
- The machine is the best choice for single worker’s operating.
- The machine has the function as bottle-uprighting,bottle-distributing, labeling, flating as well as counting.
- The position, height, angle of labeling can be adjusted easily.
- Equipped with the conveyor belt,the machine is applied to set of the production line.
Technic Parameter
1 | Labeling accuracy | ±1mm (not including the label error) |
2 | Labeling speed | 25~45bpm |
3 | Diameter&height of bottles | Diameter:φ25mm~φ120mm height:25mm~300mm |
4 | Label size | Length:20mm~290mm Width:20mm~160mm |
5 | Overall size of machine | About 1950mm×1200mm×1530mm(L×W×H) |
6 | Supply power | 220V/50HZ 110V/60HZ |
7 | N.W | About 185Kg |
Optional function (the price should added according to the choose) | |||||
Series | Part | Function | Number | Unit | Price(USD) |
1 | Ribbon printer | Production date number | 1 | Set | 620 |
2 | Universal Sensor | Detect the transparent label, hot foil, gilding label | 1 | Set | 1,300 |
Configuration
PLC control system: SIEMENS
Touch-screen : SIEMENS
Photoelectric sensor (Check bottle) : Japan KEYENCE
Photoelectric sensor (Check opaque label): German Leuze
Servo motor: America AB
Drive: America AB
Main transport motor : German JSCC
Press bottle motor: German JSCC
Speed Controller: German JSCC
Shipping & After-Sales Support:
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
