- Model: VK-SPF
- Air pressure: 0.6MPa-0.8MPa
- Filling volume: 50ml-500ml(adjustable)
- Nozzle: 1pc
- Indifference: ≤±0.5%
- Filling Speed: ≤30bpm
- Temperature: 10℃-90℃
- Relative Humidity: 10%-85%, undensable
- Protection level: IP 32
- Hopper size: 15Kg/30Kg (Standard) Customized
- Materials: Stainless steel
- Nozzle diameter: 10mm/16mm/19mm(customizable)
- Dimension: 1160mm×200mm×400mm(Standard)
- Weight: 45Kg

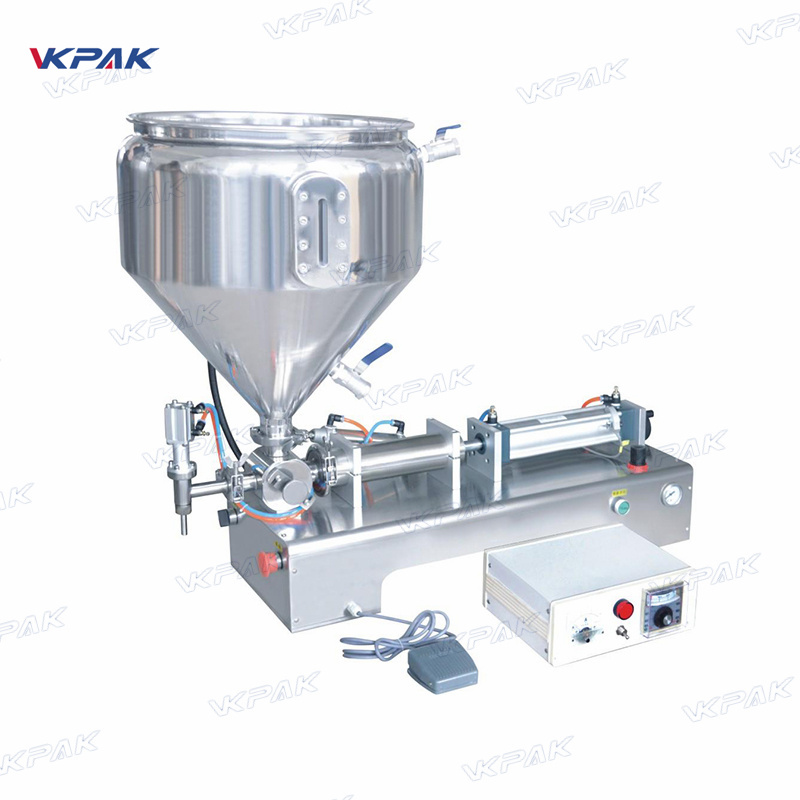

The custom cream sauce filling machine is characteristic with convenience in operation and elegance in appearance when adapted with piston and push-pull rod structure.
The machine can fill the high viscosity & low fluid materials like peanut butter because the machine works causing the vacuum tube which can suck the materials with more powerful force.

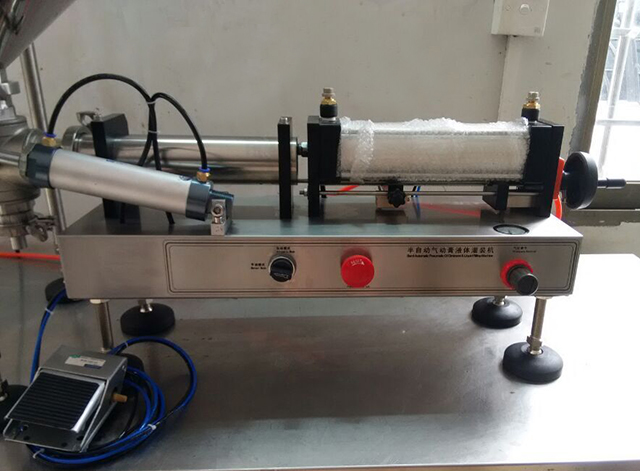

The sticky materials filling machine functions with advantage of quantity filling / filling at uniform moation / adjustable speed as well as boosting pressure for materials filling.
All the control parts and acutator parts in the filling machine consists of pneumatic part, and there is no strong friction and collison during operation of machine.

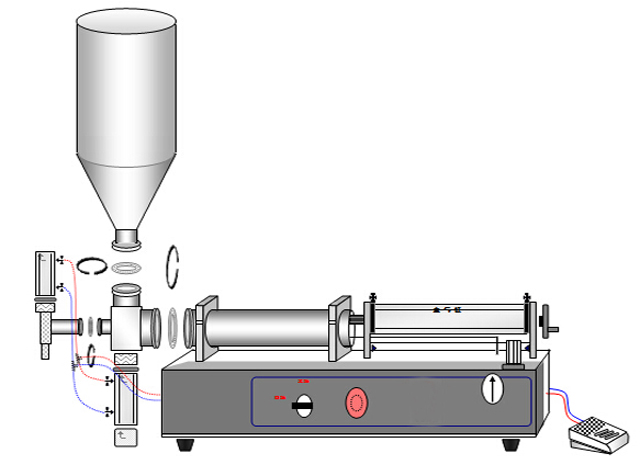

The main parts from the machine like main body / T-joint / hopper / feeding hose / filling nozzles is composed through scuffle-like clamp which can make easy the maintenance installation dissambly of machine. The machine can be used in the explosive-proof circumstance.
The application of machine is suitable for filling liquid sauce oil milk and such like material without granules; also the filling machine suitable for materials with microgranules or soft granules like cream sauce etc. The machine can be chosend in the field like pharmacy / food packing / lubractive oil / petroleum / chemical / cosmetic etc. It is the ideal equipment for improving production efficiency and saving labor from heavy work when the products require filling process .
Machine Features :
- Controlling and acutator parts are made from brand like Festo in Germany/ AirTac in Taiwan/SNS in China.
- The contact part is made of SUS316 or SUS304 stainless steel materials,GMP standard; The non-metallic part with high quality materials.
- The sealing part is made of Silicon and polyfluo; The Polfluo stands out with its anti-corrosion/temperature-resistance and anti-abrosion.
- The pneumatic parts for acutation is driven with compressured air without needing power supply; explosion-proof and safe in operation;
- The measure way adopts fixed volume and push-pull rod structure which is controlled by the subtle switch and positional stroke; As well the single-direrction valve is the swift and accurate cylinder valve so the filling accuracy is in high standard and lower indifference .
- The filling nozzle adapts cylinder valve or mechanical valve inside which there is installed with the anti-drop blocking in order to avoid drops or fiber drawing.
- The length and diameter of filling nozzles (various sizes available)can be adjustable when installed with the lifting support.
- There is no need special tools for assembling the machine.
- There is two modes for machine controlling : auto and manual; The "Manual" is controlled by pedal switch while the "Auto" in continuous filling way
Basic Parameter
Model | VK-SPF | Series number | VKLC10-2046 |
Air pressure | 0.6MPa-0.8MPa | Power | --- |
Filling volume | 50ml-500ml(adjustable) | Nozzle | 1pc |
Indifference | ≤±0.5% | Filling Speed | ≤30bpm |
Temperature | 10℃-90℃ | Relative Humidity | 10%-85%,undensable |
Protection level | IP 32 | Hopper size | 15Kg30Kg(Standard)Customized |
Materials | Stainless steel | Nozzle diameter | 10/16mm()19mmcustomizable |
Dimension | 1160mm×200mm×400mm(Standard) | Weight | 45Kg |

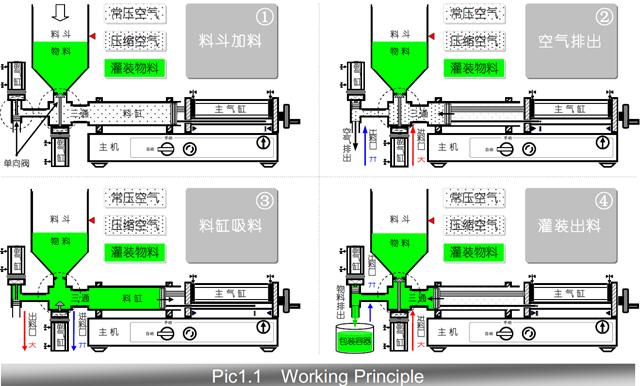

To set the filling volume is mainly up to control the stroke of Materials cylinder and main cylinder by rotating the handle .The main working principle illustrated as below:
The whole filling process includes: ① Material adding ② Air Extraction ④ Cylinder suction ⑤ material out through nozzle;
When the machine finishes the initial steps (ie material adding and air extraction process), the filling machine can be adjusted for different volume
Material Applicable And Samples As Below:
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
