E-Liquid E Cigarette Oil Filling Stopper Capping Labeling Machine

• Model: VK-MFC
• Filling Volume: 1-50ml
• Output: 30-50 Bottles/min
• Filling Precision: less than ±1%
• Power Supply: 220V/50Hz According to customer
• Capping Rate: more than 99%
• Stoppering rate: more than 99%
• Air Supply: 1.3 m3/h 0.4-0.8Mpa
• Power: 2.0 kw
• Weight: 650 kg
• Dimension: 1800*1000*1500mm

View Video

The complete line is composed of automatic bottle unscrambler, automatic filling stopper & capping machine, automatic sticker labeling machine, the output is 30-50 bottles/min, plc control.

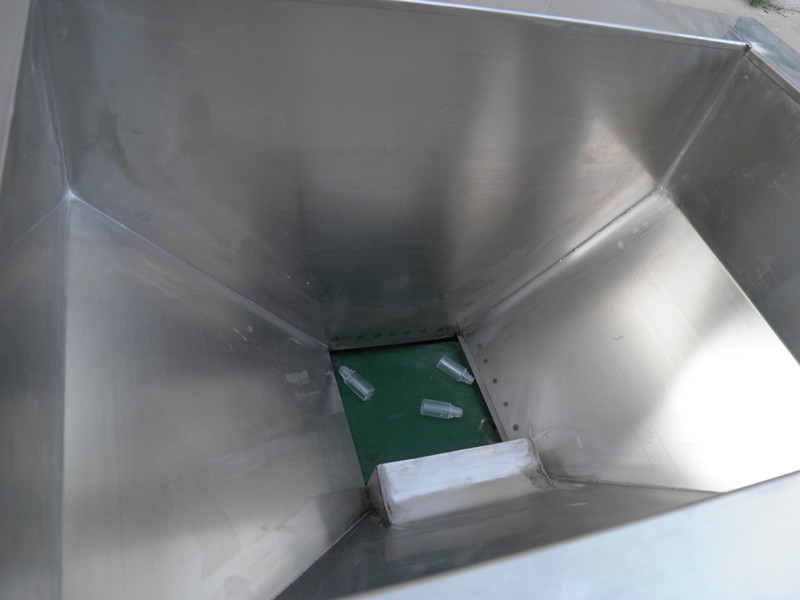

Automatic Bottle Unscrambler

Automatic bottle unscrambler is suitable for automatic arrangement and rank for all kinds of impact resistant containers(round and square bottle), it is mainly used in pharmaceutical,food and relevant industry. Just for plastic bottles.

Characteristic:

• The speed of the equipment is quick and steady, the qualified rate is high, Simple operation, easy to grasp.
• Automatic stopping when bottles are full and
• Automatic starting when bottles are lacked on the belt conveyor

Main Technical Parameters Of Bottle Unscramblers:

• Remarks: This machine just for plastic bottles
• Output: 30-100 Bottles/min
• Power: 220V/50Hz
• Power supply: 0.15 kw
• Dimension: 1200*1000*1000mm

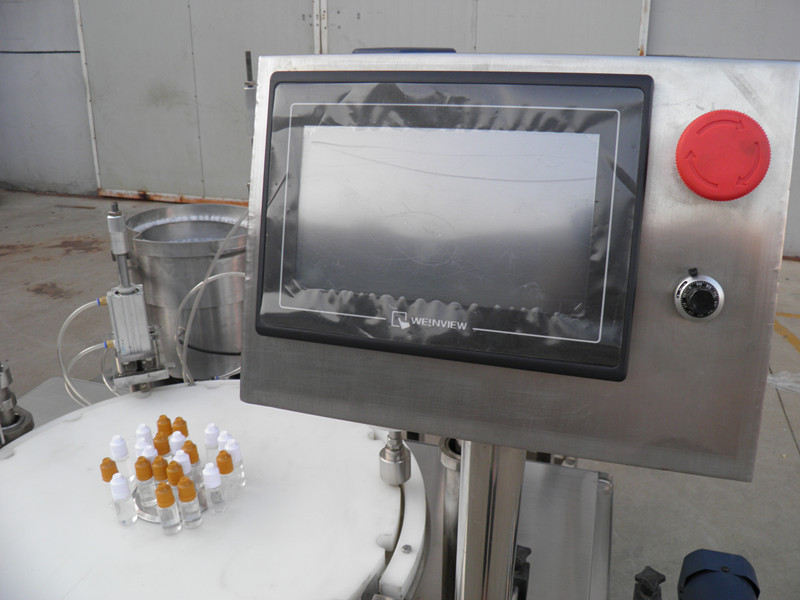

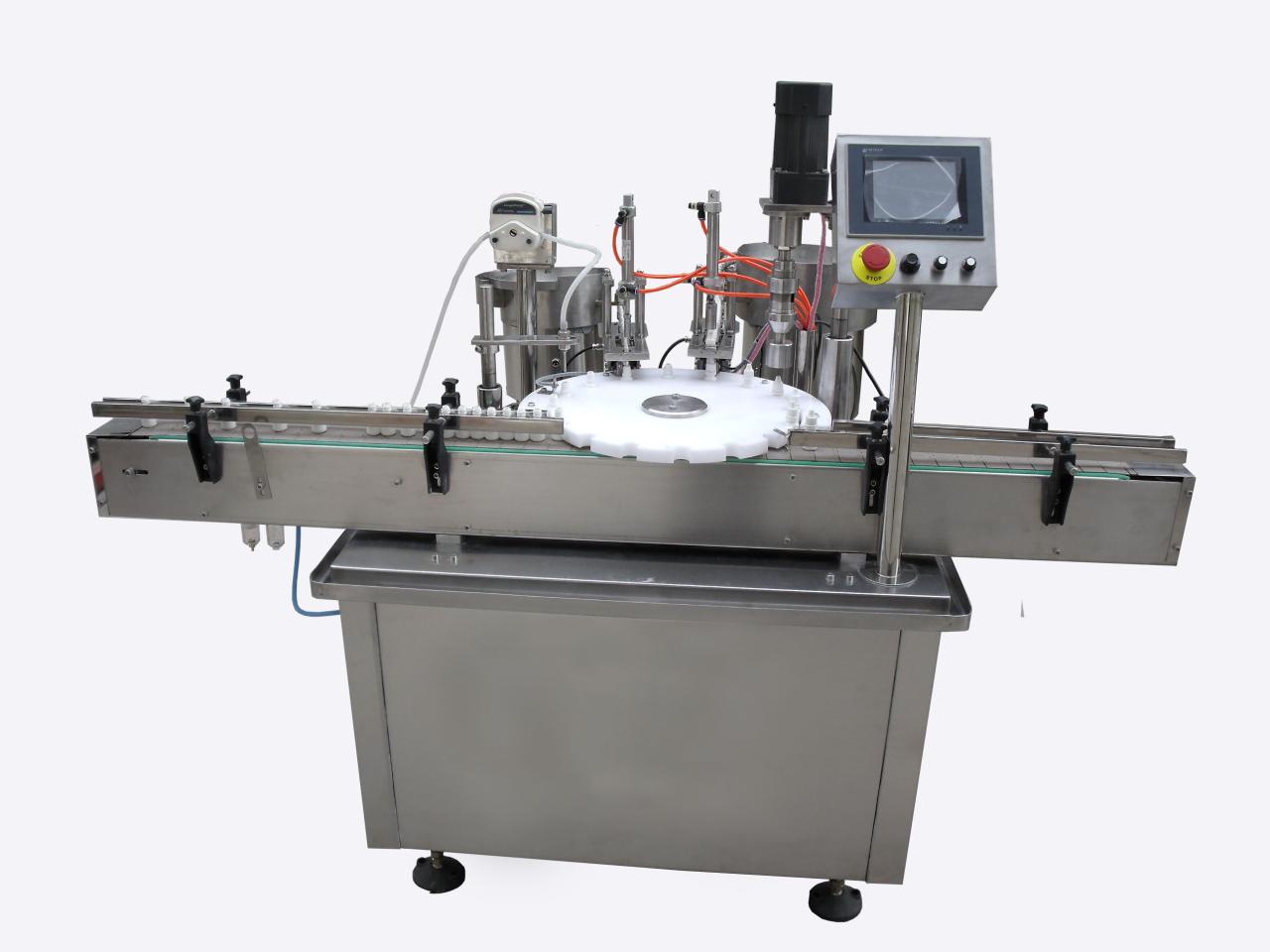

E-Liquid Filling & Capping Machine

This machine E-Liquid filling & capping machine is mainly available to fill small dose into various round and flat plastic or glass bottles with the range from 2--30ml. High precision cam provides a regular plate to position, cork and cap; and touch screen controls all action. No bottle no filling and no capping. The machine enjoys simple operation and also protects bottle caps.

Characteristic:

• The mainframe running speed is frequency conversion.
• The product quantity can be controlled.
• Automatic stop function, if there is no bottles
• No bottle, no filling

Main Technical Parameters Of Filling Stopper Capping Machine:

• Filling Volume: 1-50ml
• Output: 30-50 Bottles/min
• Filling Precision: less than ±1%
• Power Supply: 220V/50Hz According to customer
• Capping Rate: more than 99%
• Stoppering rate: more than 99%
• Air Supply: 1.3 m3/h 0.4-0.8Mpa
• Power: 2.0 kw
• Weight: 650 kg
• Dimension: 1800*1000*1500mm

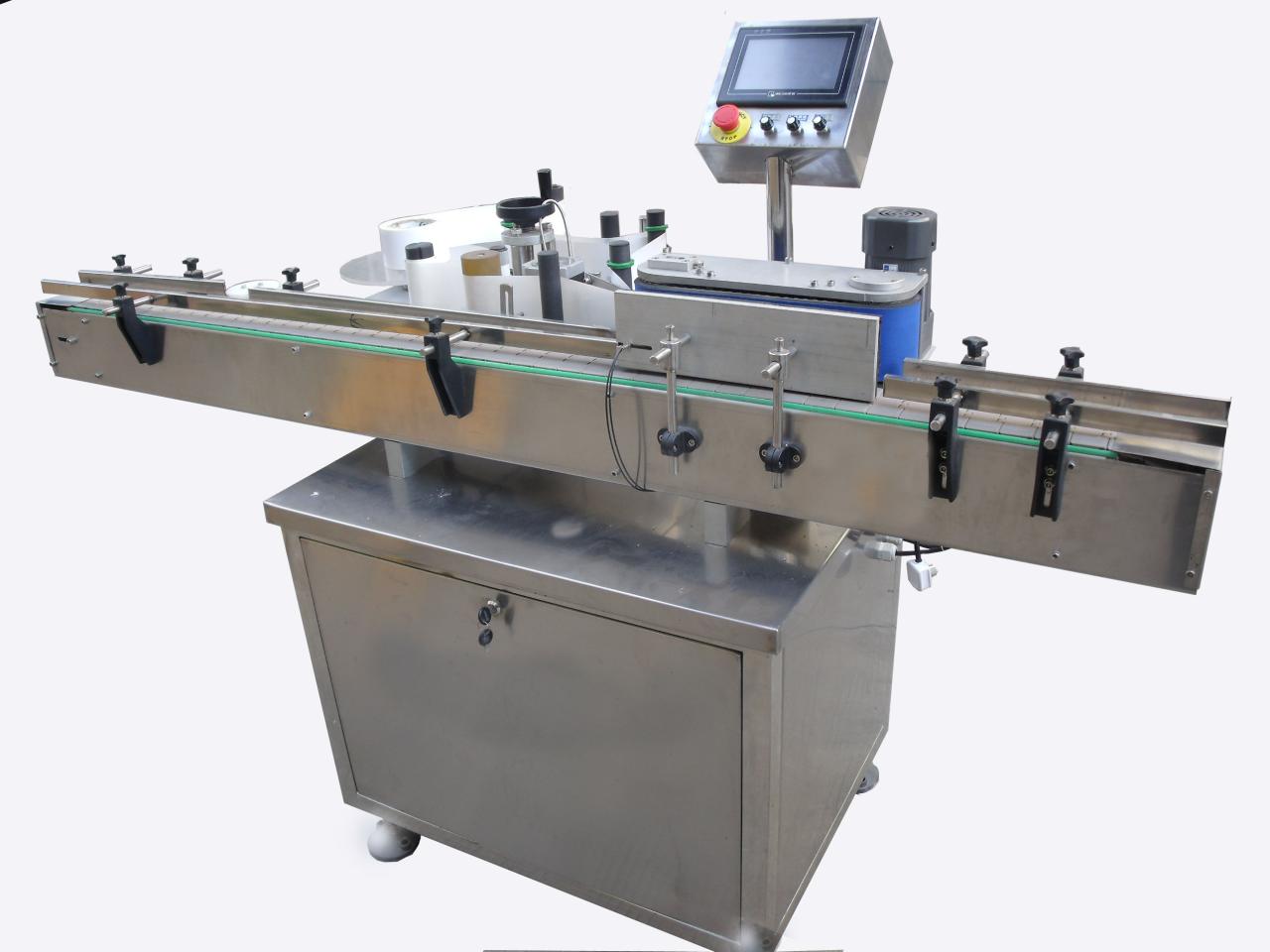

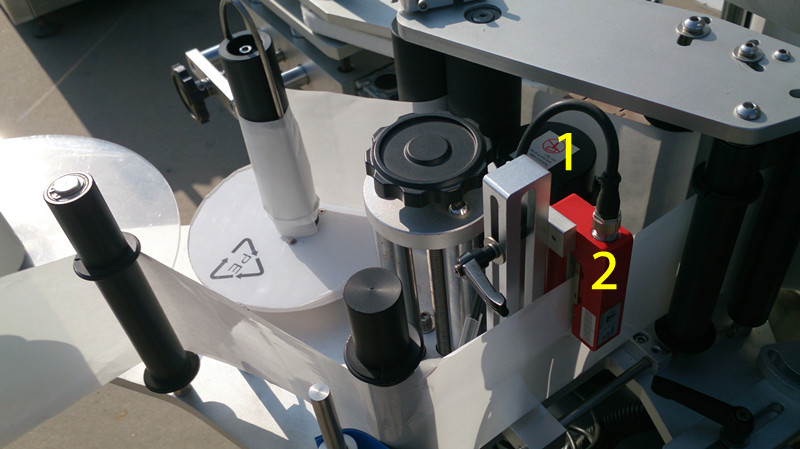

Automatic Vertical Sticker Labeling Machine For E-liquid Bottles

Automatic non-sticker vertical sticker labeling machine is intended mainly for sticking label outside the side face of round or square bottles. The machine words stably and reliably, which leads to smooth labels, clearly printed dates and batch numbers (the printer allows three rows of characters). This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles. This product conforms to the specifications of gmp absolutely. Which is widely used in pharmaceutical, foods and chemical industries

Characteristic Of Vertical Sticker Labeling Machine:

• Labeling exact and high precision
• No bottle no labeling, It can monitor and correct automatically if there will be no label
• This Machine can be used not only single but also joining in automatic packing line.

Main Technical:

• Productivity: 0-150 bottles/min
• Bottle Diameter: ф20-ф100mm
• Labeling Precision: less than ±1mm
• Label Length: 15-200mm
• Label Width: 10-100mm
• Power Supply: 0.5kw
• Power: 220V/50Hz
• Weight: 250kg
• Dimension: 2000*950*1300mm

Main Electrical Configuration

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
