Cable Wire Electric Wiring Tubes Flag Labeling Machine Semi Automatic
  • Model: VK-T807
  • Labeling precision: ±1mm (exclude the product label deviation)
  • Labeling speed: 20~40pcs/minite (its up to product size)
  • Applicable product siz: 20≤length≤300mm, 20≤width≤200mm
  • Applicable label size: 20≤length≤150mm, 20≤width≤150mm
  • Machine size: 700×400×700mm
  • Power: 220V, 50/60HZ
  • Weight: 55kg
View Video

Manual round surface wire labeling machine achieve semi-automatic labeling the adhesive label or adhesive film on the wire water pipe, screwdriver etc.

How The Wire Labeling Machine Works:

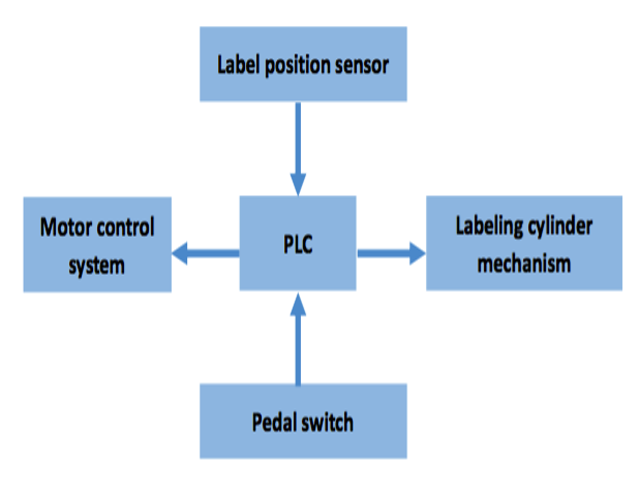

Labeling machine is based on PLC as the core, receiving signals and controlling the work of all systems. When stepping the pedal switch, the signal will be sent to the PLC and processed according to a set of programs.

Then complete the processes of stripping label and feeding label by starting on the stepper motor control system. At the same time, the label position sensor(also known as electric eye) will always pay attention to the distance by the label going through.

When a label goes through, the sensor will send the signal to PLC immediately. Then the PLC, according to a set of programs, sends the signal to stepper motor control system to stop and starts on the labeling system so as to complete the process of labeling.

Working Principle


Transmission system: The stepper motor provides power to strip labels through the synchronous belt driving the traction mechanism and the material receiving mechanism, so as to achieve stripping labels and recycling the Glassine backing sheet.

Control system: This machine is controlled by using electric and gas. The signal from electric eye (SICK sensor) and pedal switch will be transferred to PLC for processing, in order to achieve all processes of stripping labels, labeling and counting.

Application Of Wire Labeling Machine:

Product Applicable: The long round products which must be labeled with paper label or film label on the surface;

Industries Applicable: Widely used in Electric, Medicine, Plastic, industries etc.

Technic Characteristics Of Wire Labeling Machine:

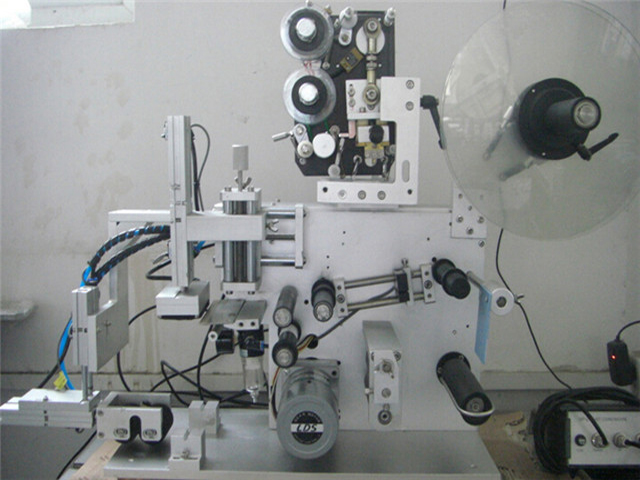

labeling wire electric.jpg

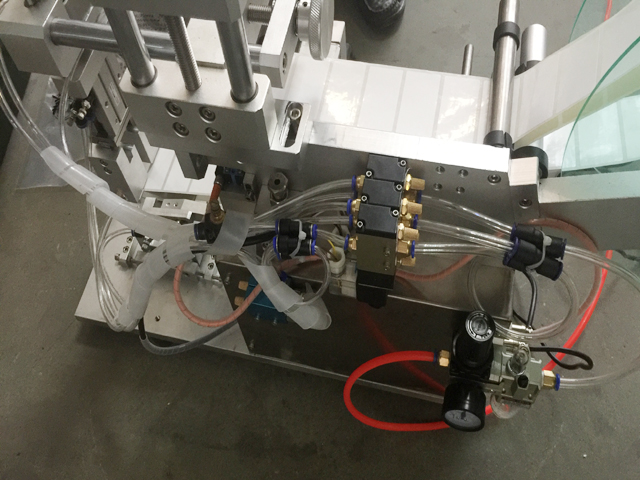

wire labeling machine.jpg

  • Small structure takes up less space and easy to move and load.
  • Good labeling precision and stability; Neat, no wrinkle, no bubble.
  • It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
  • Stable operation.

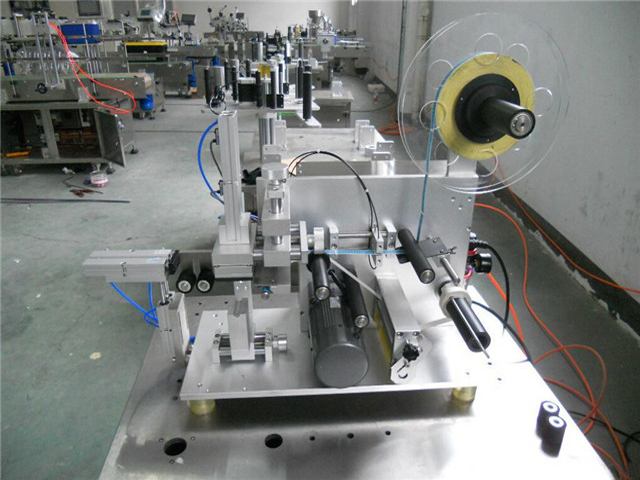

labeling wire electric.jpg

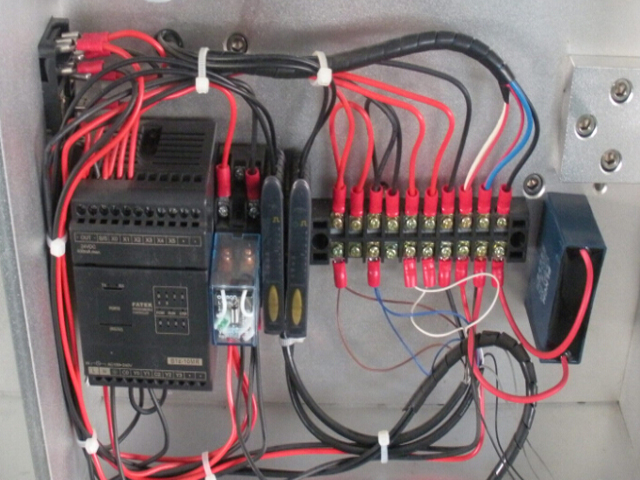

labels board electric.jpg

ModelVK-T807
Labeling precision±1mm (exclude the product label deviation)
Labeling speed20~40pcs/minite (its up to product size)
Applicable product size20≤length≤300mm,20≤width≤200mm
Applicable label size20≤length≤150mm,20≤width≤150mm
Machine size700×400×700mm
Power220V, 50/60HZ
Weight55

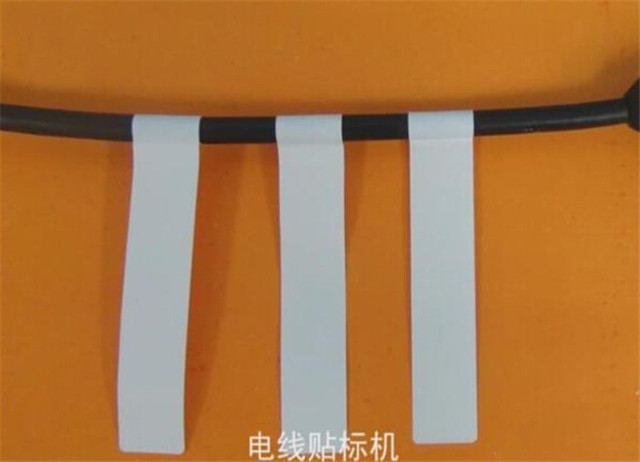

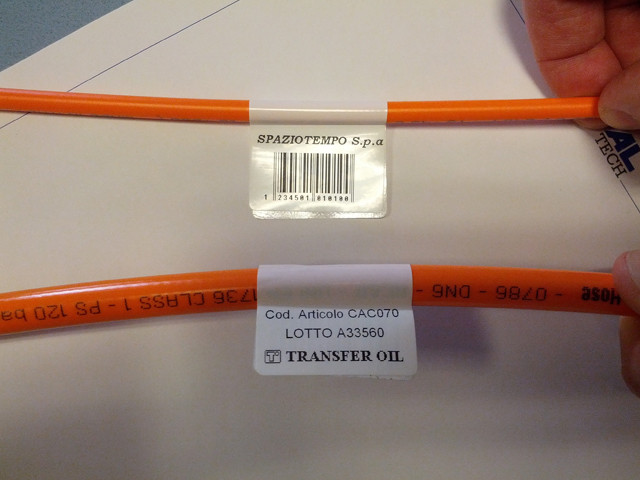

Labeling Samples

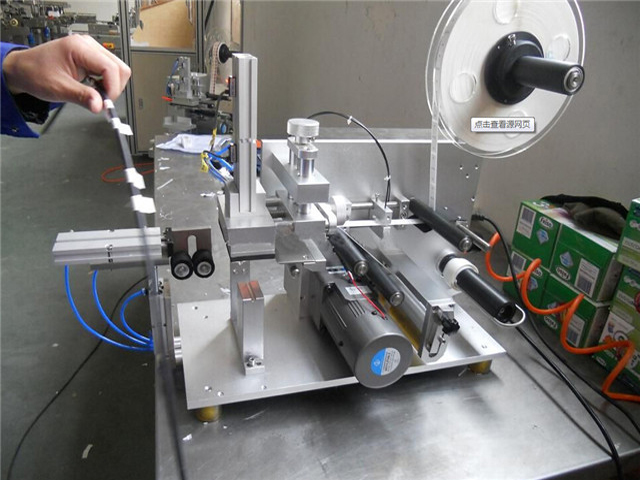

packing wooden case for shrink tunnel.jpg

cable for labeling machine.jpg

cable for labeling machine.jpg
