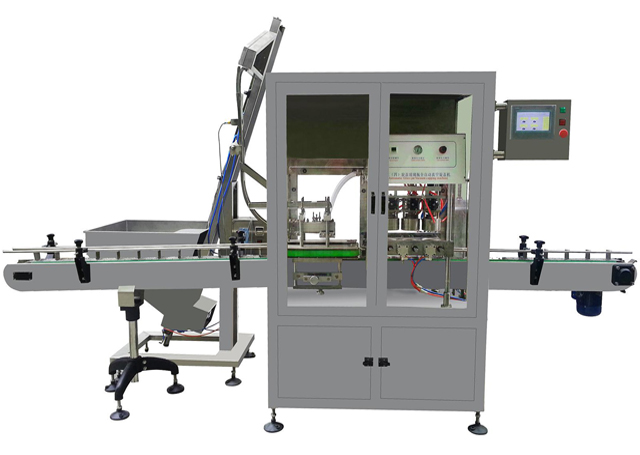

Automatic Inline Sauce Three Head Glass Jars Vacuum Capping Machine

Model: VK-VC-3
Production capacity: 40-50 bottles/min
Power: ≤1.3KW(include vacuum pump)
Power supply: AC220V/50-60Hz
Cap diameter: 30-55mm; 50-85mm
Bottle height: 50-180mm; 120-250mm
Bottle diameter: 30-85m; 80-150mm
Air consumption: 0.3m3/0.8Mpa
Limiting vacuum degree: About -0.08Mpa
Capping torsion: 5~25N.M
Overall dimension: 3000L×1000W×1900H mm
Weight: 720kg

The machine integrates automatic lid sorting, lid loading, and automatic vacuuming and screwing. A vacuum pump is used to vacuum the sealed vacuum chamber to obtain a high degree of vacuum. No bottle, no cap, automatic alarm function for missing cap, high degree of automation, main pneumatic and electrical components adopt internationally renowned brands, stable and reliable performance, widely used in food cans, beverages, condiments, health products and other industries.

This machine is researched and developed by our company with years of experience, it is unique in domestic. Integrated automatically cap arranging with covering, vacuum capping. Adopted vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the glass jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

Main Features

Integrated automatically cap arranging with covering and vacuum capping, with high automation.
Adopted vacuum pump to achieve high vacuum.
Capping torsion and vacuum degree can be set as required.
Suitable for different shapes and sizes bottles with changing few parts.
The main pneumatic and electric parts are from world famous brands to ensure stable, reliable and durable performance.

High vacuum zero damage: Automatic vacuum capping machine is the starlight the company's latest research and development of a brand new model, using the flexible rise ring seal chamber structure, it can do fragments bottle rate and vacuum zero leakage.

High quality rotary cover: capping system adopts imported brand to drive servo motor, through professional programming design it can achieve the best effect of screw cap, and through the touch screen it can modificate various parameters, in order to adapt various production requirements.

High reliability: host transport tank platform use the servo drive, combine with the sensor detection to realize intelligent in and out of tank, and avoid the traditional mechanical broken bottle fault and equipment damage caused by hard links.
