Automated Bopp Shrink Sleeve Labeling Machine For Plastic Bottles
  • Host machine: AC220V, 50/60HZ, 1.5-2KW, single-phase
  • Production speed: 7000-9000 b/h
  • The standard length of label: 100mm
  • Diameter of bottle body: 28mm-125mm
  • Length of label: 30mm-250mm
  • Thickness of label: 0.035mm-013mm
  • Material of label: PVC, PET, OPS
  • Size of the label sleeving host machine: L2000MM*W850MM*H2000MM

Automatic shrink sleeve labeling machine, with steam shrink tunnel and generator, PVC, PET lable machine

Features Of Sleeve Labels Applicator

  • Various bottle type; round, square and so on.
  • High precious location; save cost and correct.
  • Suitable for adjustment inside film range from 3′to 10′.
  • Man-machine conversation liquid crystal screen; easy operation
  • Magic Eye control feeding material, automatically.
  • PLC control system
  • High- speed sleeve film. (Temperature; from 100 to 600°C suitable for various film material)
  • Screw transportation located system; location for various shape bottles.
  • No need tool adjustment

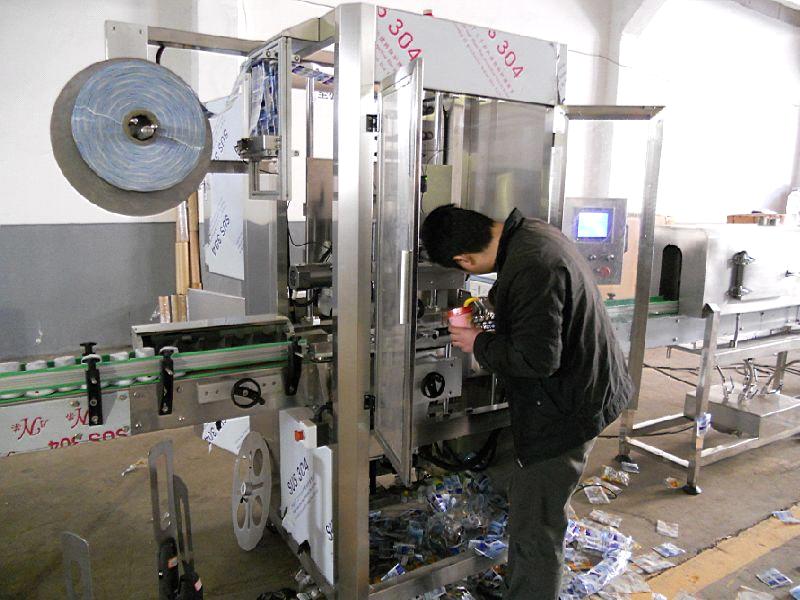

China_Automatic_shrink_sleeve_labeling_machine_for_daily_use

Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.

Unit cutter head plane design in China which apply to the container of 30mm—130mm. You never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is aheadof other congener products.

Single shrinking label feed plane, reasonably height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly, the label will detect and locate automatially. The change of label is quick and convinent, besides, the cut place is absolutely exact.

Label feeding equipment; driving synchronized tensility control the supply of label, the supply ability is 90meters per minite, volume label supply plane is 500mm, the internal diameter of paper tube will be 4’, 8’, 10’. The configuration of label feeding is stable tensility which enable the exact length of label and the stable, quick supply of label.

The center pillar applies step by step shoot label structure and the speed is 150 bottles per minute.

The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure enable the precision of cut location within 1mm.

Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

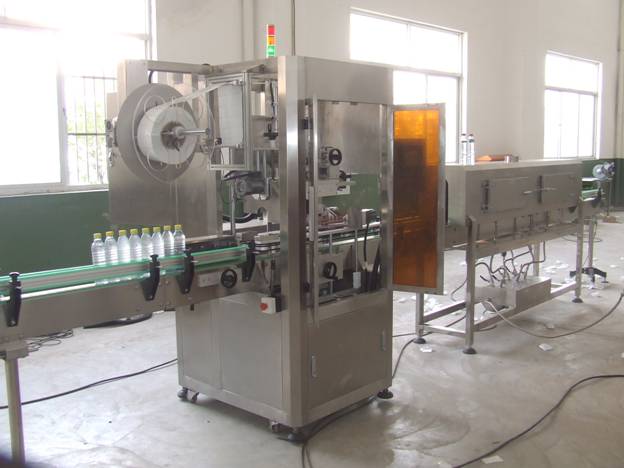

Labeler-Equipment-PVC-Sleeve-Labeling-Machine-for-Pet-Bottle

Parameters Of Sleeve Labeling Equipment

  • Host machine voltage: AC220V, 50/60HZ, 1.5-2KW, single-phase
  • Production speed: 7000-9000 b/h
  • The standard length of label: 100mm and the speed can be adjusted accord to customer’s requirements. The speed will be faster if the label is shorter.
  • Diameter of bottle body: 28mm-125mm
  • Length of label: 30mm-250mm
  • Thickness of label: 0.035mm-013mm
  • Material of label: PVC, PET, OPS
  • Shrink machine size: 2100*850*2000mm
  • Steam pressure: 1kg/cm2
  • Steam: 50kg/h
  • Steam furnance size: 2000*500*1700mm
  • Host machine size: L2000MM*W850MM*H2000MM


What Is The Sleeve Labeller?

Sleeve labelers apply shrink to fit and tamper proof wrapping on bottle and other packaging. Fast, efficient, and easy to operate, a sleeve labeler system can easily apply most tamper-evident, overall, middle, and full-body sleeve applications.

Uses

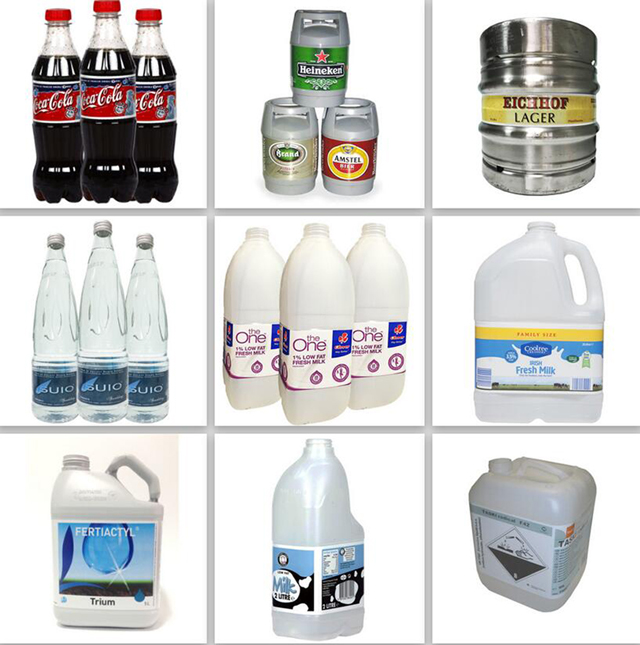

bottles for sleeve labeller.jpg
The most common use for the shrink-to-fit labeling sleeve is to guard against product tampering. If the seal is damaged the consumer knows there is the possibility of tampering. Other uses include curvy containers which require labels to fit their form. Sleeve labelers fulfill this need, but applying an over-sized, 360 degree label sleeve over the container. Heat is applied the label causing it to shrink, fitting it exactly to the container contours.

Advantages

The high quality graphics of the label wrap around the entire bottle, for enhanced visual shelf appeal. There is no glue involved in the labeling process. Sleeve labels contour the container, square, cylinder, pear shaped, the sleeve offers 360 degree labeling.

Disadvantages

Wrap-around, or sleeve labels, are less efficient to apply than pressure-sensitive labels, and so have higher costs associated with them.

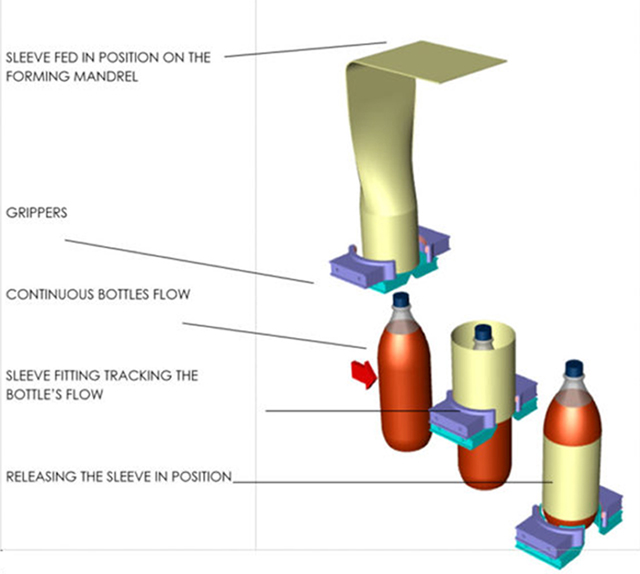

Mandrel diagram.jpg

Packaging Materials For The Sleeve Labeling Machine:

The packaging materials to wrap the bottles should be the PVC shrink film type.The name "shrink film" was created because plastic shrinks tightly over whatever it is covering when heat is applied to it. Thus, "shrink wrapping" using shrink film.

POF shrink film is made from POF which stands for polyolefin. In the past, PVC (Polyvinyl Chloride) film was widely used for shrink wrapping but it is slowly being replaced by POF shrink film.
